Total 6000 counts true RMS digital multimeter

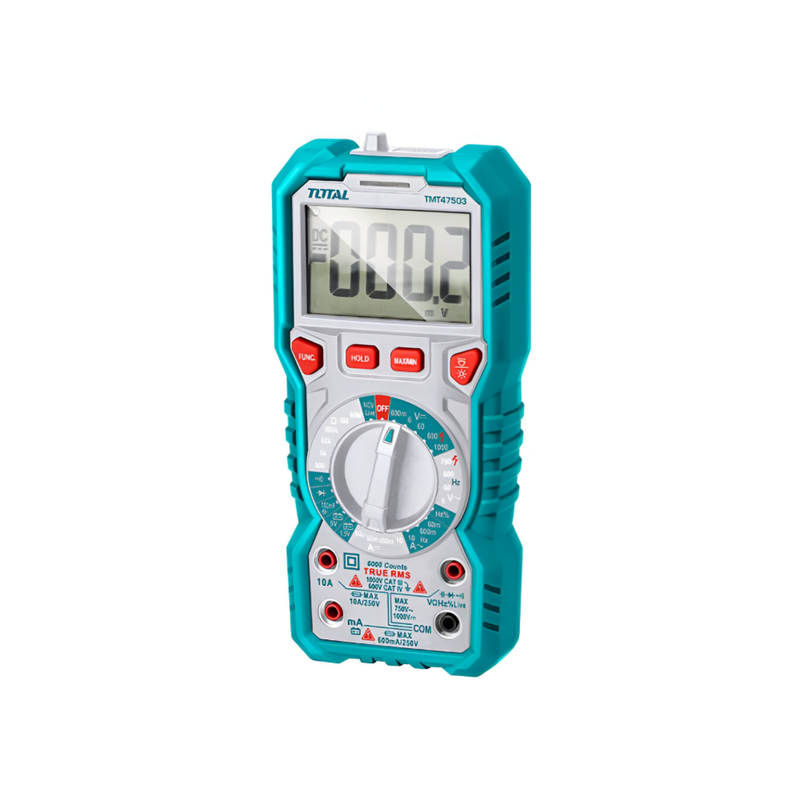

Total TMT47503 Digital Multimeter – Advanced True RMS 6000 Counts with NCV & Live Wire Detection, CAT III 1000V, CAT IV 600V
TTX-TMT47503
The Total TMT47503 Digital Multimeter is an advanced, professional-grade True RMS multimeter designed for high-precision electrical measurements. It is rated for CAT III 1000V and CAT IV 600V applications, making it ideal for industrial, commercial, and field use where safety and accuracy are crucial. With its True RMS feature, it accurately measures both AC and DC voltage and current, even with distorted waveforms. This multimeter offers a wide range of testing capabilities, from diode testing, capacitance, and resistance to frequency and duty cycle measurements, making it a versatile tool for professionals working in demanding environments.
Specifications
Voltage Measurement:
DC Voltage: 600mV / 6V / 60V / 600V / 1000V ±(0.5% +3)
AC Voltage: 6V / 60V ±(0.8% +3) / 600V / 750V ±(1.0% +10)
Current Measurement:
DC Current: 60µA / 60mA / 600mA ±(0.8% +3) / 10A ±(1.2% +3)
AC Current: 60mA / 600mA ±(1.0% +3) / 10A ±(1.5% +3)
Frequency Measurement:
10Hz / 100Hz / 1000Hz / 10KHz / 100KHz / 1000KHz / 10MHz ±(1.0% +3)
Capacitance Measurement:
10nF ±(4.0% +30) / 100nF / 1000nF / 10µF / 100µF / 1000µF ±(4.0% +3) / 10mF / 100mF ±(5.0% +3)
Resistance Measurement:
600Ω / 6kΩ / 60kΩ / 600kΩ / 6MΩ ±(0.8% +3) / 60MΩ ±(1.0% +30)
Duty Cycle:
1% ~ 95% ±(2.0% +3)
Display:
True RMS 6000 Counts
Other Features:
Backlight Display for working in low light conditions.
Flashlight Indicator for additional visibility when needed.
Diode Test for quick testing of diodes.
Sound & Light Indicator for Non-Contact Voltage (NCV) and Live Wire detection.
Data Hold function for retaining measurements.
Low Battery Indicator to avoid unexpected shutdowns.
Safety Ratings:
CAT III 1000V, CAT IV 600V
Model Number:TMT47503
Weight:0.549kg
Dimensions:20.5 x 13.5 x 6.5 cm
Features and Benefits
1. True RMS Measurement
Accurately measures AC and DC voltages and currents, including distorted waveforms.
Ensures reliability and precision, even in complex electrical environments.
2. Non-Contact Voltage (NCV) & Live Wire Detection
Provides visual and audible alerts to detect live electrical circuits without direct contact.
Prevents accidental shocks, improving overall safety.
3. Wide Measurement Range
Versatile capabilities for measuring voltage, current, capacitance, resistance, frequency, and duty cycle, meeting the needs of various electrical tasks.
Ideal for electricians, engineers, and technicians working in different fields.
4. Backlit Display with Flashlight Indicator
Makes it easy to work in dark or low-light environments.
Flashlight indicator ensures visibility during difficult tasks.
5. Durable and Safety-Oriented Design
CAT III 1000V / CAT IV 600V safety ratings make this multimeter ideal for high-voltage and industrial applications.
Rugged construction ensures reliability in demanding environments.
6. Data Hold & Low Battery Indicator
Conveniently stores readings for easy reference and recording.
Low Battery Indicator ensures that the device won't unexpectedly turn off during critical tasks.
7. Easy to Use and Navigate
Auto-Range feature for quick and accurate results without manual adjustments.
User-friendly interface with a clear and easily readable display.
