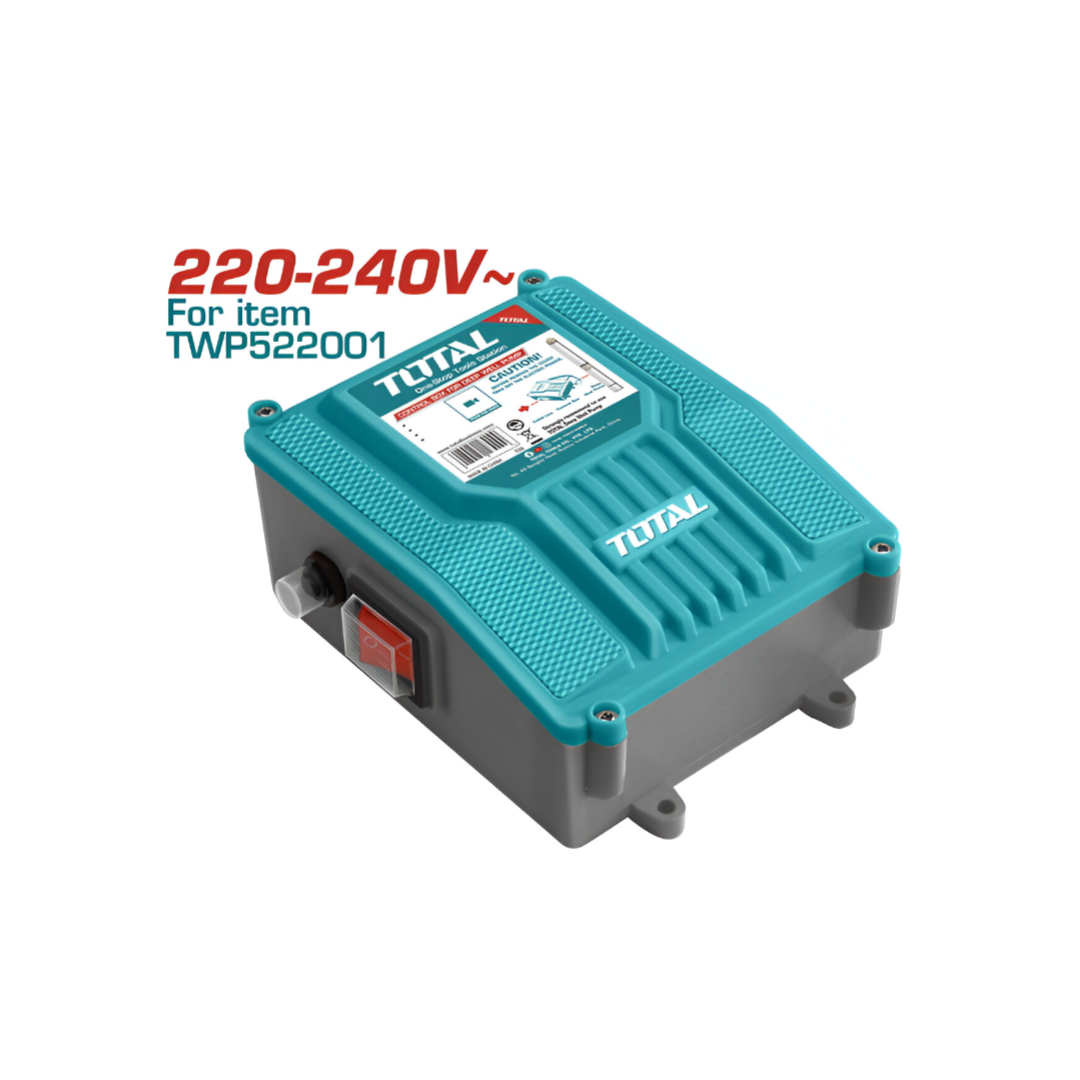

TOTAL Control Box for Pump (TWS522001) – Advanced Protection & Control System for Pumps | Overload, Short Circuit, and Overcurrent Protection

Specifications:

• Model: TOTAL Control Box for Pump (TWS522001)

• Voltage: 220-240V, 50Hz

• Max Current Rating: 16A

• Power Capacity: Up to 2HP pumps

• Material: Weather-resistant plastic housing

• Protection Features: Thermal overload protection, short circuit protection, and overcurrent protection

• IP Rating: IP65 (dust-tight and water-resistant)

• Temperature Range: 0°C to 40°C

• Dimensions: 250mm x 200mm x 140mm

• Weight: 3.2 kg

• Cable Length: 30 meters

• Applications: Submersible pumps, water pumps, industrial pumps, agricultural irrigation systems

• Certifications: CE, RoHS compliant

Features:

1. Thermal Overload Protection:
   The TOTAL Control Box (TWS522001) includes thermal overload protection, ensuring that your pump motor is protected from overheating. If the motor temperature exceeds the safe operating range, the control box will automatically shut the pump down to prevent damage and extend the motor's lifespan.

2. Short Circuit Protection:
   With short circuit protection, this control box automatically disconnects the pump from the power supply in the event of a short circuit. This prevents the motor and electrical system from being damaged, reducing the risk of fire or other electrical hazards.

3. Overcurrent Protection:
   Overcurrent protection safeguards the pump motor by monitoring the electrical current. If the current exceeds safe levels, the control box cuts power to the pump, preventing motor damage and reducing the likelihood of system failure or breakdowns.

4. Energy-Efficient Operation:
   The TOTAL Control Box (TWS522001) is designed for energy-efficient operation, minimizing unnecessary energy consumption while ensuring optimal performance. This feature is especially important for long-term operation, reducing the overall energy costs of running the pump system.

5. Weather-Resistant and Durable Construction:
   Built with weather-resistant plastic housing, the TOTAL Control Box is capable of withstanding environmental elements such as moisture, dust, and extreme temperatures. With an IP65 rating, the control box is dust-tight and water-resistant, making it suitable for both indoor and outdoor installations.

6. Compact and User-Friendly Design:
   The TOTAL Control Box (TWS522001) features a compact design that allows it to be installed in tight spaces without compromising on performance. It is designed with clear, easy-to-understand labels for simple wiring, making installation straightforward for both professional technicians and DIY users.

7. Wide Range of Applications:
   This control box is versatile and can be used with various types of pump systems, including:

   • Submersible pumps for deep well water extraction

   • Water pumps for residential, commercial, or industrial water supply

   • Agricultural irrigation pumps for efficient water distribution on farms and gardens

   • Industrial dewatering pumps for construction or mining applications

8. Compact Size for Easy Installation:
   The TOTAL Control Box has a space-saving design, making it easy to install in confined areas. The intuitive layout and labeled connections help reduce installation time and ensure an efficient setup process.

9. Reliable Protection Against Electrical Faults:
   The TOTAL Control Box (TWS522001) offers multi-level protection to ensure the safety of the pump system. From preventing overloads to safeguarding against short circuits and overcurrent conditions, it gives you peace of mind by reducing the risks associated with electrical issues.

10. Low Maintenance Requirements:
    Designed for minimal upkeep, the TOTAL Control Box ensures continuous protection with low maintenance. Regular inspections and occasional cleaning are enough to keep it working efficiently for years.

11. Affordable and Cost-Effective Pump Protection:
    The TOTAL Control Box (TWS522001) is an affordable solution to safeguard your pump system. By providing essential protection features and increasing the lifespan of your pump, this control box helps reduce maintenance costs and avoid expensive repairs in the long run.
