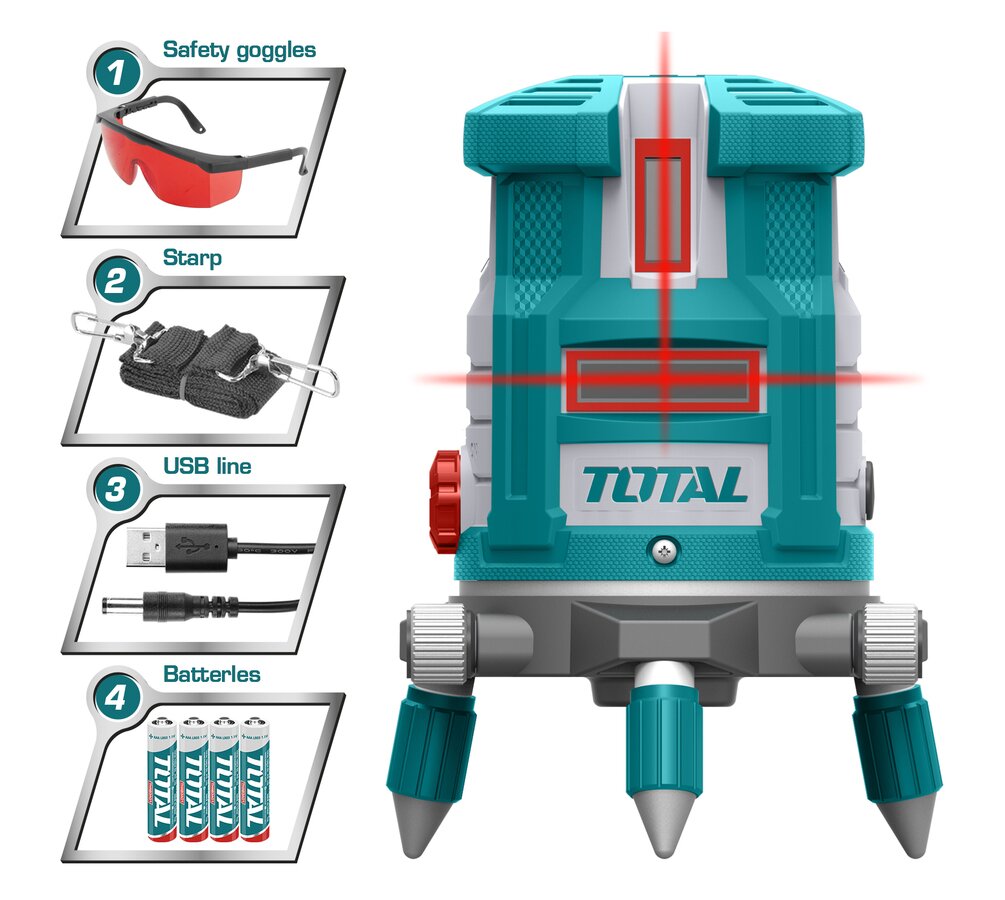

TOTAL TLL306505 Self-Leveling Line Laser – High-Precision 5-Line Red Laser Level with Cross Lock & Laser Gain Function
The TOTAL TLL306505 Self-Leveling Line Laser is a high-performance leveling tool designed for construction, engineering, and interior design applications. Featuring one horizontal line and four vertical lines, this laser level provides precise alignment and leveling for tasks such as wall positioning, tiling, framing, and more.
Equipped with advanced self-leveling technology, the TLL306505 automatically levels within ±3°, ensuring accuracy and efficiency. It offers high-precision measurements with line accuracy of ±1.5mm at 5m and leveling accuracy of ±1.0mm at 5m. The unit features a Cross Lock function, which allows users to fix the laser at a desired angle, and a Laser Gain function to enhance visibility in different lighting conditions.
Specifications
Model: TLL306505
Working Range: 0 – 30m
Laser Type:Red
Laser Class: 3R, <5mW
Number of Laser Lines:1 Horizontal, 4 Vertical
Self-Leveling Range:≤3°
Levelling Accuracy: ±1.0mm at 5m
Line Accuracy: ±1.5mm at 5m
Levelling Time:<3 seconds
Cross Lock Function: Yes
Laser Gain Function: Yes
Operating Temperature: 0°C to +40°C
Storage Temperature: -20°C to +70°C
Power Supply:4 x AA (1.5V) Batteries
Features
✔ 5-Line Laser for Maximum Precision:
1 horizontal line and 4 vertical lines ensure perfect alignment for professional applications.
✔ Self-Leveling Function:
Automatically adjusts within ±3° for quick and accurate results.
✔ Fast Leveling Time:
Self-levels in less than 3 seconds, enhancing work efficiency.
✔ High Accuracy:
Line Accuracy of ±1.5mm at 5m and Leveling Accuracy of ±1.0mm at 5m ensure precision in every task.
✔ Cross Lock Function:
Allows users to lock the laser at an angle for custom alignments and non-level applications.
✔ Laser Gain Function:
Enhances laser brightness for improved visibility in different lighting conditions.
✔ Durable & Temperature-Resistant:
Operates in extreme conditions, from -20°C to +70°C, making it ideal for outdoor use.
✔ Battery-Powered & Lightweight:
Runs on 4 AA batteries, making it portable and easy to use in various job site conditions.
