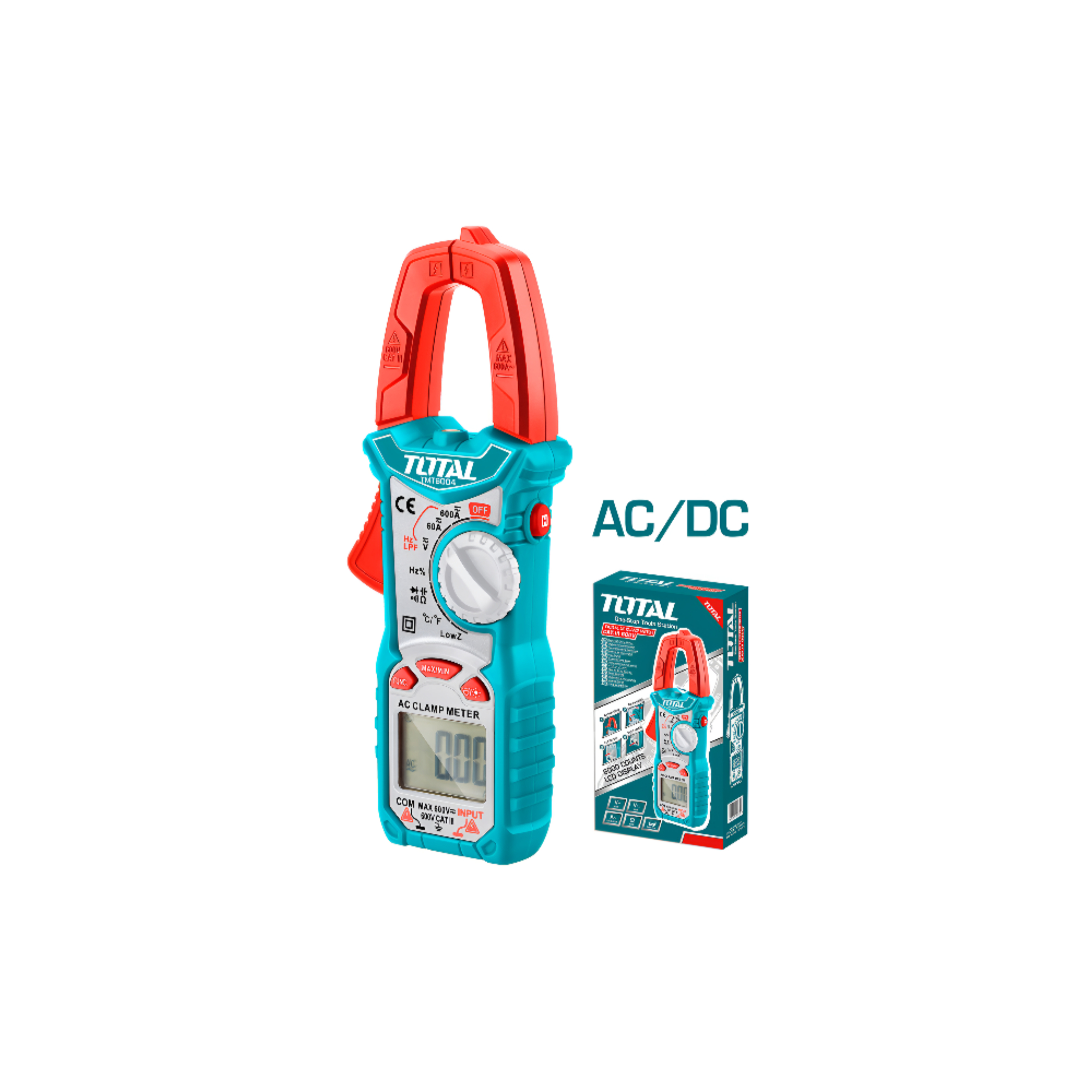

Total TMT46004 DC/AC Clamp Meter – Industrial Grade, True RMS, CATIII 600V, Reliable and Versatile for Precise Electrical Measurements

Specifications

• Voltage Measurement:

  • DC Voltage Range: 600V ±(0.5% + 3)

  • AC Voltage Range: 600V ±(0.8% + 5)

• Current Measurement:

  • DC Current Range: 60A / 600A ±(2.5% + 5)

  • AC Current Range: 6A / 60A / 600A ±(2.5% + 8)

• Duty Cycle Range: 1%~99% ±(1.0% + 2)

• Capacitance Measurement:

  • 10nF / 100nF / 1µF / 10µF / 100µF / 1mF / 10mF / 100mF ±(4.0% + 3)

• Resistance Measurement:

  • 6kΩ / 60kΩ ±(1.0% + 3)

• Display:

  • True RMS for accurate readings

  • 6000 Counts

• Power Supply: Standard batteries (typically included)

• Temperature Measurement: Yes

• Shipping Details:

  • Model Number: TMT46004

  • Dimensions: 22.5 x 11.5 x 4.5 cm

Features

1. True RMS Display for Accurate Measurements

• The True RMS function ensures precise and reliable readings for both sinusoidal and non-sinusoidal signals, making this clamp meter suitable for a wide variety of electrical testing applications.

2. Wide Voltage and Current Measurement Range

• Capable of measuring DC voltage up to 600V and AC voltage up to 600V.

• DC current and AC current ranges from 6A to 600A, allowing users to perform high-current measurements accurately in a variety of scenarios.

3. Versatile Testing Capabilities

• Capacitance measurement is available from 10nF to 100mF, making it suitable for testing capacitors in different types of circuits.

• Resistance measurement allows for accurate readings across a wide range of values, ensuring comprehensive electrical testing.

• The temperature measurement feature adds versatility, enabling the clamp meter to test temperatures in electrical components, such as motors, transformers, or circuit breakers.

4. Enhanced User Experience

• Backlight and flash light indicator ensures visibility in low-light or dark environments, providing clarity for all readings.

• The data hold function allows users to freeze and retain readings on the display for easier analysis, especially when working in hard-to-reach areas or in tight spaces.

5. Durable and Industrial-Grade Design

• Rated for CATIII 600V, the TMT46004 is designed to withstand harsh conditions commonly found in industrial and automotive environments.

• It is engineered to be reliable, precise, and durable, ensuring long-lasting performance in demanding electrical applications.

6. Low Battery Indicator

• The low battery indicator lets users know when it’s time to replace the batteries, ensuring you won’t be caught off guard during critical measurements.
