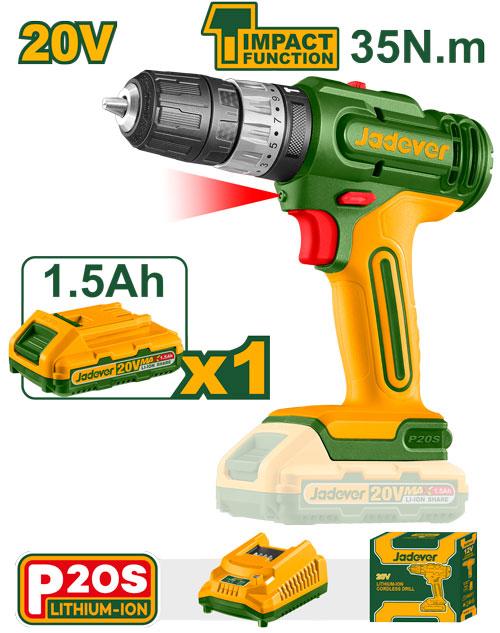

JADEVER JDCDP521 20 V Cordless Impact Drill — 0-400 / 0-1 500 rpm, 22 500 bpm, 35 Nm Torque, 0.8-10 mm Chuck
JADEVER JDCDP521 20 V Cordless Impact Drill — 0-400 / 0-1 500 rpm, 22 500 bpm, 35 Nm Torque, 0.8-10 mm Chuck
TTX-JDCDP521
The JADEVER JDCDP521 is a high-performance cordless impact drill designed for versatile use in construction, renovation and workshop settings. Built around a 20 V battery platform, this drill offers robust drilling and driving power thanks to its impact mechanism along with a two-speed gearbox for adaptability. With a maximum torque of 35 Nm, an impressive 22,500 impacts per minute (bpm) and a chuck capacity of 0.8-10 mm, it meets the demands of both everyday tasks and more challenging drilling or fastening work. Whether you’re drilling into masonry, wood or metal, or driving fasteners, the JDCDP521 seeks to deliver consistent results while staying portable and battery-powered.
Specifications
Model: JDCDP521.
Voltage: 20 V (battery as per cordless system)
No-load Speed: 0-400 rpm (1st gear) / 0-1 500 rpm (2nd gear)
Max Impact Rate: 22 500 bpm (blows per minute)
Max Torque: 35 Nm
Chuck Type / Capacity: Plastic chuck, 0.8-10 mm capacity
Torque Settings: 18+1+1 (clutch settings)
Gearbox: Mechanical two-speed gear (low speed/high torque and high speed/low torque)
Integrated LED work-light: Helps illuminate your work area in darker environments.
Key Features
Impact function for tougher materials: With up to 22,500 bpm impact rate, the JDCDP521 delivers the rapid hammering action useful for drilling into masonry, concrete, and tougher surfaces — not just wood or metal.
Two-speed gearbox + strong torque (35 Nm): The first gear gives controlled torque for driving screws or drilling in tough materials (0-400 rpm), the second gear allows higher speed (0-1 500 rpm) for faster drilling or when less torque is needed.
0.8-10 mm chuck capacity: Allows the use of a broad range of drill bit shanks and driver bits suitable for general DIY or workshop tasks.
Adjustable clutch/tq settings (18+1+1): Enables more precise control when using the tool for screw driving or when you want to prevent over-driving fasteners.
Cordless convenience & mobility: Operating on a 20 V battery system means you are freed from cables, making it easier to work in tight spaces, outdoors, or where mains access is limited.
LED work-light: Helpful in dim lighting, stairwells, interiors or evening work – adding extra functionality to the tool.
Versatility across tasks: From drilling holes for anchors, assembling furniture, installing fixtures, to driving large screws — this tool covers a wide scope of applications.
