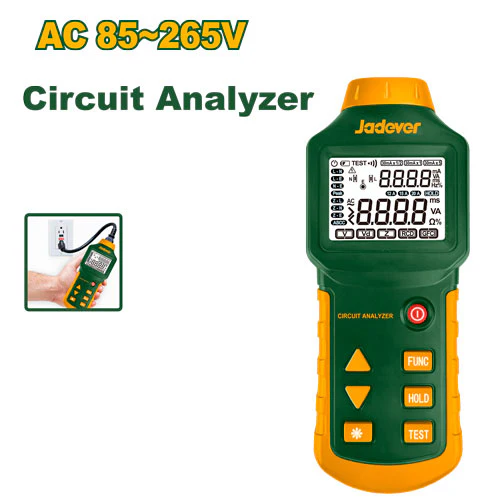

JADEVER JDDM9502 – Advanced RCD/Loop Circuit Tester (AC 85–265 V, True RMS, Data Logging, LCD Display)
JADEVER JDDM9502 – Advanced RCD/Loop Circuit Tester (AC 85–265 V, True RMS, Data Logging, LCD Display)
TTX-JDDM9502
The JADEVER JDDM9502 is a high‑precision electrical circuit tester designed specifically for testing residual current devices (RCDs) and circuit loop parameters in commercial and residential installations. It is tailored for professional electricians, service technicians, and installation contractors who require accurate measurements of voltage, loop impedance, RCD trip time/current, and other critical safety parameters. Equipped with True RMS technology, back‑lit LCD display and data‑saving capability, the JDDM9502 ensures that your diagnostics meet modern regulatory and safety standards
Specifications
Model: JDDM9502
Line Voltage (AC): 85–265 V
Neutral–Ground Voltage (AC): 0–10 V
Peak Line Voltage (AC): 121–374 V
Line Frequency Range: 45–65 Hz
RCD Trip Time Range: 1 ms – 6.5 s
RCD Trip Current (typical): 30 mA
Display: LCD with back‑light
Data Saving/Logging: Yes
Power Source: 6 × LR03 (AAA) batteries
Dimensions: 194 × 78 × 37 mm (approx)
Measurement Technology: True RMS for accurate AC readings.
Features
Comprehensive RCD & Loop Circuit Testing
The JDDM9502 allows you to test not only basic voltages but also loop impedance and RCD performance (trip time and current) — essential for verifying protection systems and ensuring compliance with safety regulations.Wide Voltage Range Compatibility
With support for AC 85–265 V, this unit is suitable for a broad variety of global installations and mains supplies, making it highly versatile for use in Lebanon and regionally.True RMS Measurement for Accuracy
The inclusion of True RMS measurement ensures reliable readings even in distorted or non‑sine wave conditions — an important benefit when working with modern electronic loads or variable‑speed drives.True Data Logging & Back‑lit LCD Display
The back‑lit display ensures legibility in poorly‑lit job‑site environments, and the data‑saving feature means you can capture and review test results — useful for documentation, certification or service reports.Compact & Portable Design
With dimensions of approximately 194 × 78 × 37 mm and powered by AAA batteries, the device is easy to carry around site, manoeuvre into panels and use in tight spaces.
