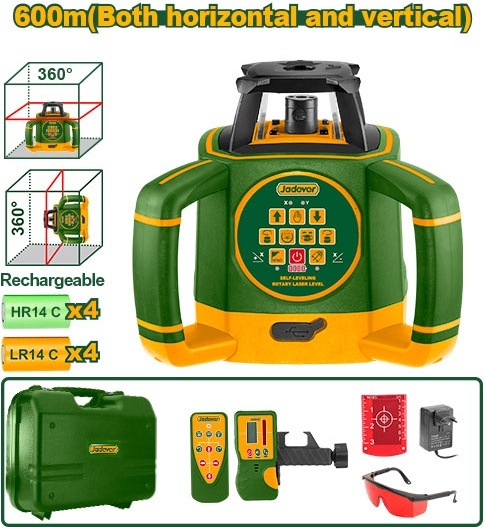

Jadever JDLE6B02 Professional Self-Leveling Rotary Laser Level

Specifications

• Model: JDLE6B02

• Brand: Jadever

• Laser Type: Red laser beam (approx. 635 nm wavelength) — bright and visible for long-range reference.

• Accuracy:±1 mm @ 10 m — ensures reliable vertical/horizontal alignment over distance.

• Self-Leveling Range:±5° — automatically compensates small inclines to keep beam level.

• Working Range: Up to 600 m diameter (with compatible detector) — ideal for large job sites.

• Rotational Coverage: 360° continuous horizontal sweep — full panoramic reference line.

• Rotational Speeds: Multiple selectable speeds (e.g., 0, 60, 120, 300, 600 rpm) for different job conditions.

• Remote Control Support: Operate from a distance (up to ~20 m) for convenient setup and adjustments.

• Protection Rating:IP54 — dust and light splash resistance for outdoor durability.

• Power Supply: Rechargeable Ni-MH battery (DC 4.8–6 V) — long runtime and field-ready operation.

• Operating Temperature: Typically −10 °C to +45 °C — suitable for a range of environments.

• Packaging: Usually supplied in a protective aluminum carrying case (varies by seller).

Key Features

• 360° Continuous Rotary Beam:
  Projects a seamless horizontal reference line around the entire job site — perfect for leveling, large-area alignment, and grading.

• High Accuracy for Professional Results:
  With ±1 mm precision @ 10 m, the JDLE6B02 provides confidence in measurement and alignment, reducing rework and improving installation quality.

• Self-Leveling Mechanism:
  Automatically levels within ±5°, saving time and preventing manual calibration errors.

• Long-Range Capability:
  When used with a compatible laser receiver/detector, the unit can cover up to 600 m in diameter, making it suitable for exterior sites, excavation, and grading.

• Remote Control Convenience:
  Adjust settings and control the unit from up to ~20 m away — perfect when the laser is mounted and out of reach.

• Variable Rotation Speeds:
  Choose from multiple RPM settings to suit specific tasks — slow for precise reading and high for faster detection by the receiver.

• Rugged Outdoors-Ready Design:
  Built with an IP54 rating for resistance to dust and water spray, this rotary laser can withstand typical construction environments.

• Rechargeable Battery Operation:
  Powered by a rechargeable Ni-MH battery pack, providing long runtime and flexibility on sites without immediate power access.
