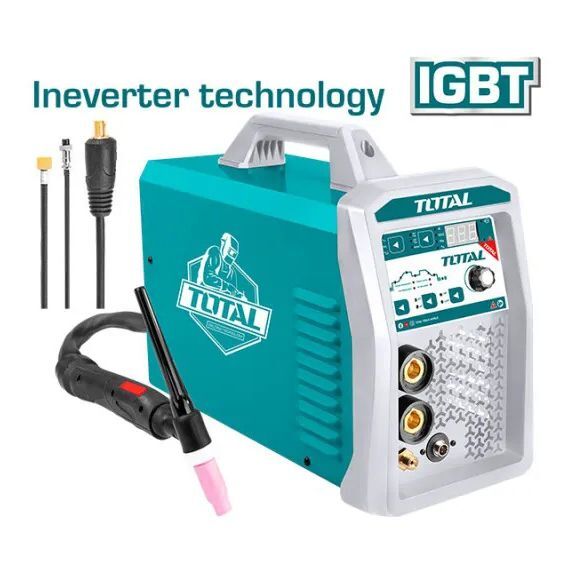

TOTAL Inverter AC DC TIG/MMA Welding Machine – High-Performance, Dual-Function Welder for Precision TIG and MMA Applications | 200A, Portable & Energy-Efficient

Specifications:

• Welding Type: AC/DC TIG (Tungsten Inert Gas) and MMA (Manual Metal Arc) welding

• Output Current: 200A (Maximum)

• Input Voltage: 220V AC, 50/60Hz

• Rated Duty Cycle: 60% at 200A

• Power Factor: 0.85

• Efficiency: ≥85%

• Dimensions: 48 x 22 x 36 cm (L x W x H)

• Weight: 9.5 kg (20.9 lbs)

• Electrode Diameter (MMA): 1.6mm - 4.0mm

• Tungsten Electrode Size (TIG): 1.6mm - 2.4mm

• No-Load Voltage: 56V

• Arc Voltage (TIG): 20-28V

• Insulation Class: F

• Protection Class: IP21S

• Cooling Method: Forced Air Cooling

• Cable Length: 2 meters for electrode holder, 2 meters for work clamp, 2 meters for TIG torch

• Warranty: 1 year

• Color: Red and black with durable metal housing

Features:

1. AC/DC Dual Functionality (TIG Welding):
   The TOTAL Inverter AC DC TIG/MMA Welding Machine is equipped with both AC and DC TIG modes, allowing for superior versatility. DC TIG is perfect for welding ferrous metals like steel and stainless steel, while AC TIG is ideal for aluminum and other non-ferrous metals. This dual functionality ensures that the machine is suitable for a wide range of welding tasks.

2. 200A Powerful Output:
   With a maximum output of 200A, this welding machine offers enough power for welding a variety of materials. Whether you are working with thin sheet metal, thick structural components, or delicate aluminum welding, the machine’s high output ensures strong and durable welds every time.

3. Advanced Inverter Technology:
   The advanced inverter technology integrated into this welding machine provides increased energy efficiency, reduced power consumption, and a stable arc. The inverter system also reduces the size and weight of the machine, making it more compact and portable without sacrificing performance.

4. MMA (Stick) Welding Capability:
   In addition to TIG welding, the TOTAL Inverter AC DC TIG/MMA Welding Machine also supports MMA (stick) welding. The MMA mode is ideal for welding thicker materials or for use in outdoor and remote locations. It supports a wide range of electrodes (1.6mm - 4.0mm) for diverse welding applications, ensuring flexibility for all kinds of welding tasks.

5. 60% Duty Cycle at 200A:
   With a 60% duty cycle at 200A, this welding machine ensures that you can weld for extended periods without the risk of overheating. This higher duty cycle is especially beneficial for longer welding sessions, enabling you to work more efficiently on demanding projects.

6. IP21S Protection Rating:
   The TOTAL Inverter AC DC TIG/MMA Welding Machine is rated with IP21S protection, ensuring it is resistant to dust and water splashes. This level of protection makes the machine reliable for use in various environments, including outdoor and industrial job sites where exposure to the elements is possible.

7. Smooth Arc and Stable Welding:
   This welding machine delivers a stable arc with minimal spatter for both TIG and MMA welding processes. The smooth and consistent arc improves control, reduces defects, and ensures clean, high-quality welds on every project. Whether you’re doing fine TIG welding or robust MMA welds, the machine performs seamlessly.

8. Forced Air Cooling System:
   The machine features a forced air cooling system that helps maintain the optimal temperature during extended welding operations. This system prevents the machine from overheating, ensuring continuous operation, and prolongs its service life, making it reliable for both professional and home-based applications.

9. Compact and Portable Design:
   With a weight of just 9.5 kg (20.9 lbs) and compact dimensions (48 x 22 x 36 cm), the TOTAL Inverter AC DC TIG/MMA Welding Machine is highly portable. The lightweight design allows for easy transportation between job sites, workshops, or other locations, providing flexibility for the welder who needs to move the machine frequently.

10. User-Friendly Controls and Settings:
    The machine features an intuitive control panel with easy-to-read digital displays, allowing you to adjust the amperage and voltage settings quickly for both TIG and MMA welding processes. This user-friendly interface ensures that even novice welders can operate the machine with ease and achieve optimal results.

11. Durable Metal Housing:
    Built to withstand tough working environments, the TOTAL Inverter AC DC TIG/MMA Welding Machine is housed in durable metal casing, providing protection for the internal components. The rugged construction ensures the machine can withstand impact, vibrations, and other external conditions, making it a reliable choice for various industries.
